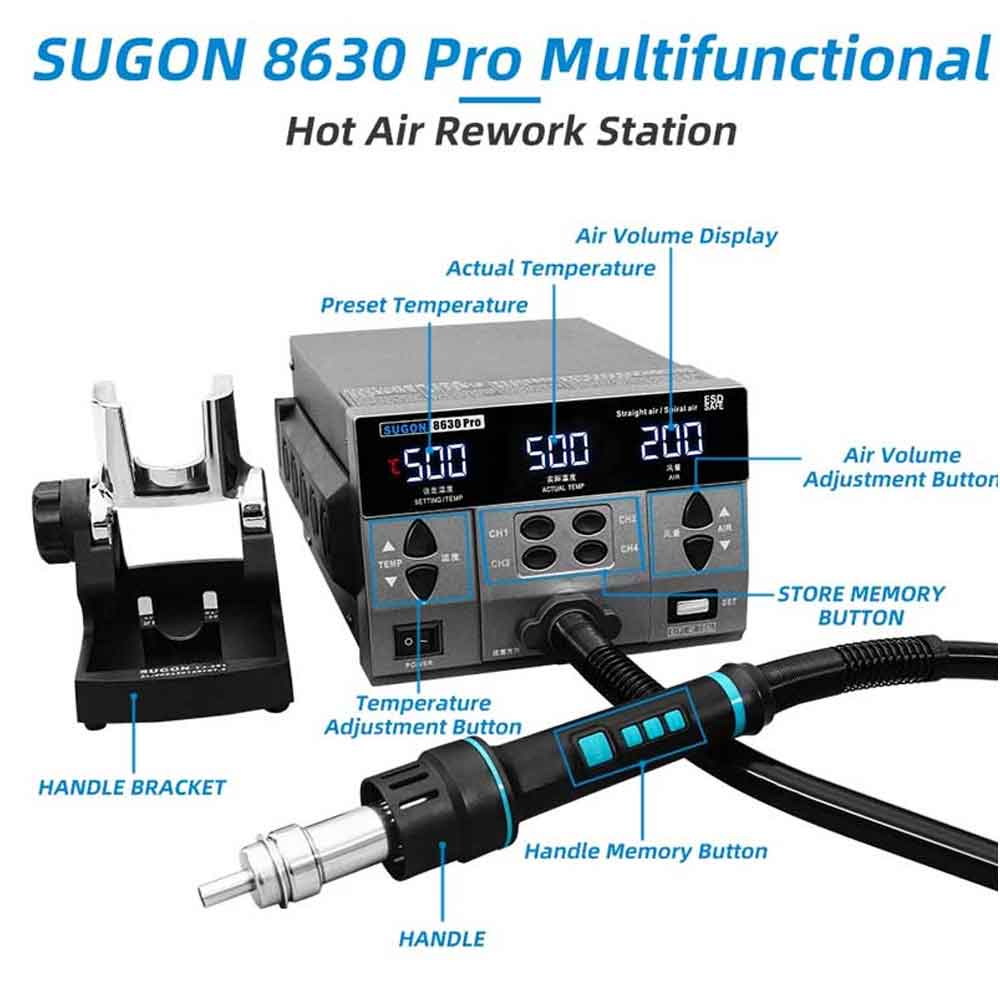

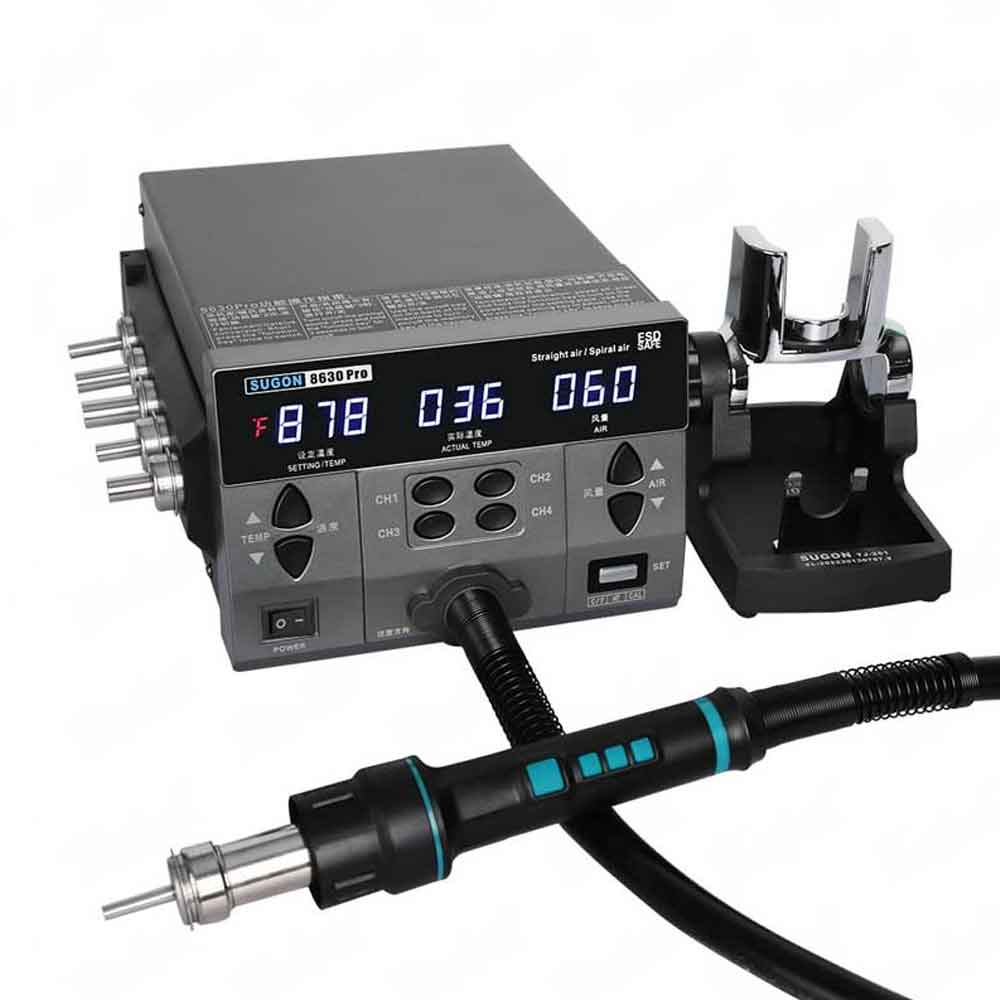

SUGON 8630 Pro SMD Rework Station

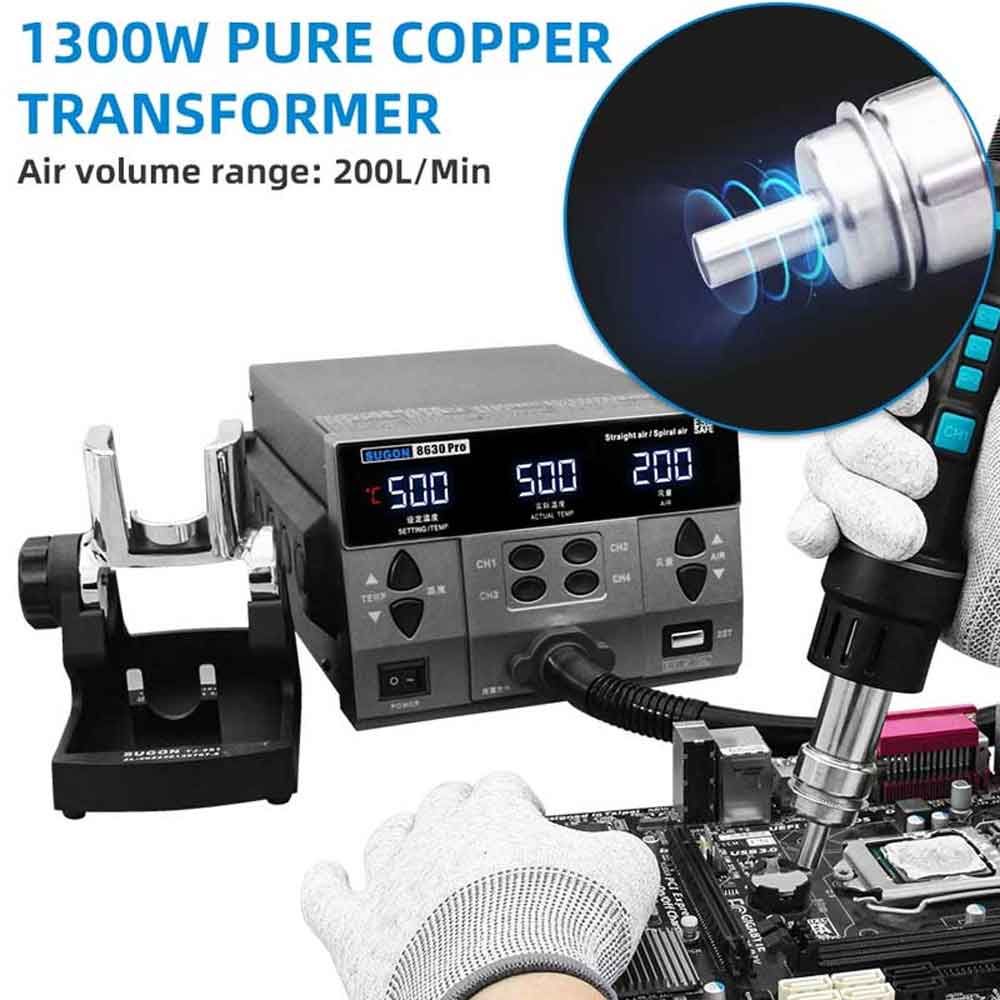

  • Power: 1300W
  • Input Voltage: AC 110V/220V
  • Temperature range: 100?~500?/212?~932
  • Air volume range: 1~200 Levels
  • A magnetic switch controls the air gun handle
  • The automatic high-air volume cooling function

Rs.14,498.00 Rs.16,000.00

SUGON 8630 Pro SMD Rework Station


  • The SUGON 8630PRO SMD REWORK STATION atented air nozzle holder can quickly change the air gun nozzle under constant temperature and constant air volume without other auxiliary tools
  • It is equipped with aluminum bracket and No. 5, 7, 10 direct air nozzles and No. 7, 10 spiral air nozzles
  • There is no longer a distinction and boundary between straight air and spiral air, only a different air nozzle needs to be replaced
  • Gorgeous water lamp display: set temperature, real-time temperature, set air volume, display more accurate, more convenient to use
  • Four memory buttons, one second to read, three seconds to store
  • With temperature conversion/buzzer switch/temperature calibration/automatic sleep function
  • Press the button to accurately adjust the temperature and air volume
  • Large air volume, high power, fast heating, accurate and stable
  • Mutual inductance monitoring is increased between temperature and air volume. When there is an unexpected failure of the air pump, the heating core will quickly stop the reaction and reduce the occurrence of fire accidents
  • Upgrade the pluggable components, the handle of the air gun can be removed to replace the hot components, greatly improving the efficiency of the heat gun
  • Setting temperature range: 100~500; actual temperature range: 100~500; air volume adjustment range: 1~200 steps
  • 6 quick change and storage brackets, easy and fast to replace the air nozzle, no need to wait for the air nozzle to cool down and then replace it
  • The system is equipped with an automatic high-air volume cooling function to extend the life of the heat generator and protect the hot air handle
  • After the handle is placed on the air gun bracket, it will enter the rapid cooling state, wait for 15-20 seconds, and then enter the dormant state


  • Suitable for disassembly and soldering of a variety of components, such as SOIC, CHIP, QFP, PLCC, BGA, etc
  • Suitable for heat shrinkage, drying, paint removal, debonding, thawing, preheating, disinfection, Glue welding, etc
  • The air volume is adjustable, suitable for fields that require small air volume and large air volume heating together
  • Suitable for lead-free hot air desoldering occasions

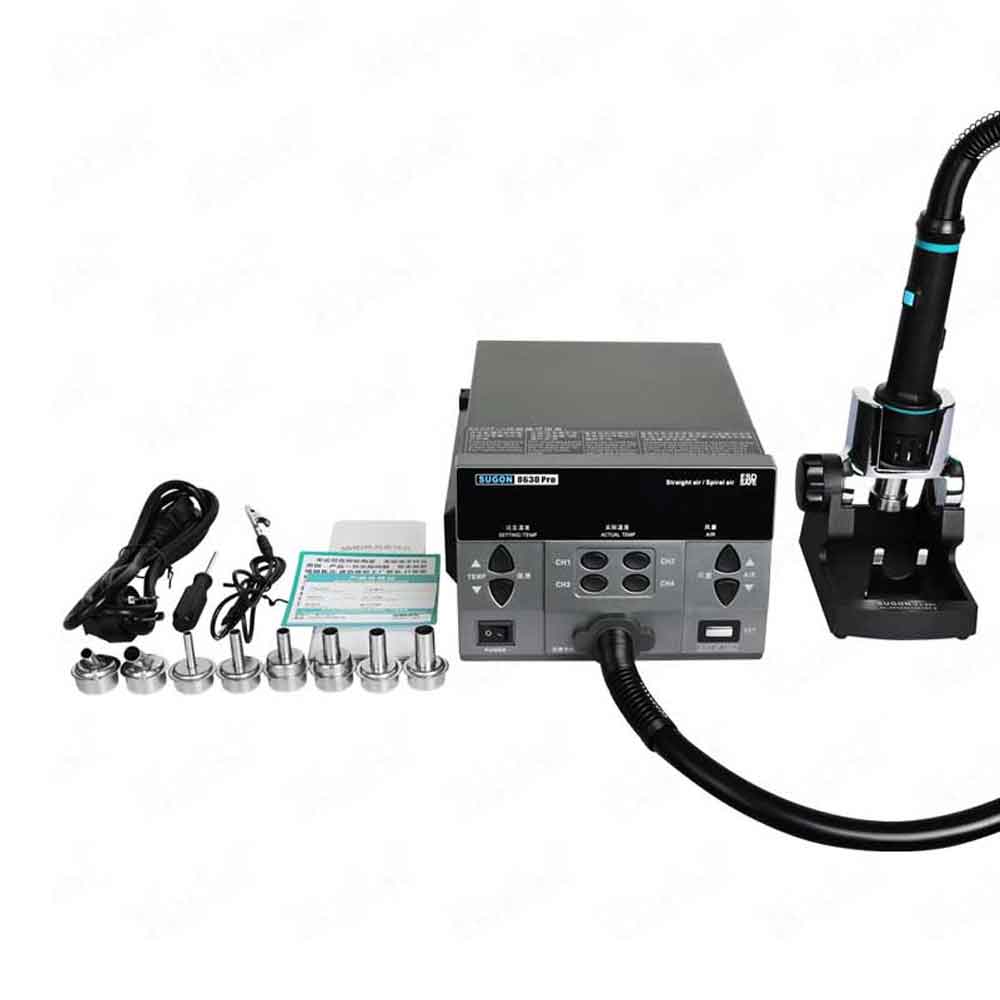

Packing Details:

  • 1 x Hot Air Rework Station
  • 1 x Air Gun Stand
  • 6 x Nozzle
  • 1 x Power Cable
SUGON 8630 Pro SMD Rework Station
SUGON 8630 Pro SMD Rework Station
SUGON 8630 Pro SMD Rework Station
SUGON 8630 Pro SMD Rework Station
SUGON 8630 Pro SMD Rework Station
SUGON 8630 Pro SMD Rework Station
SUGON 8630 Pro SMD Rework Station
SUGON 8630 Pro SMD Rework Station
SKU: SUGON8620DXPRO-1 Categories: , ,
Weight 3.5 kg
Dimensions 30 × 20 × 15 cm
