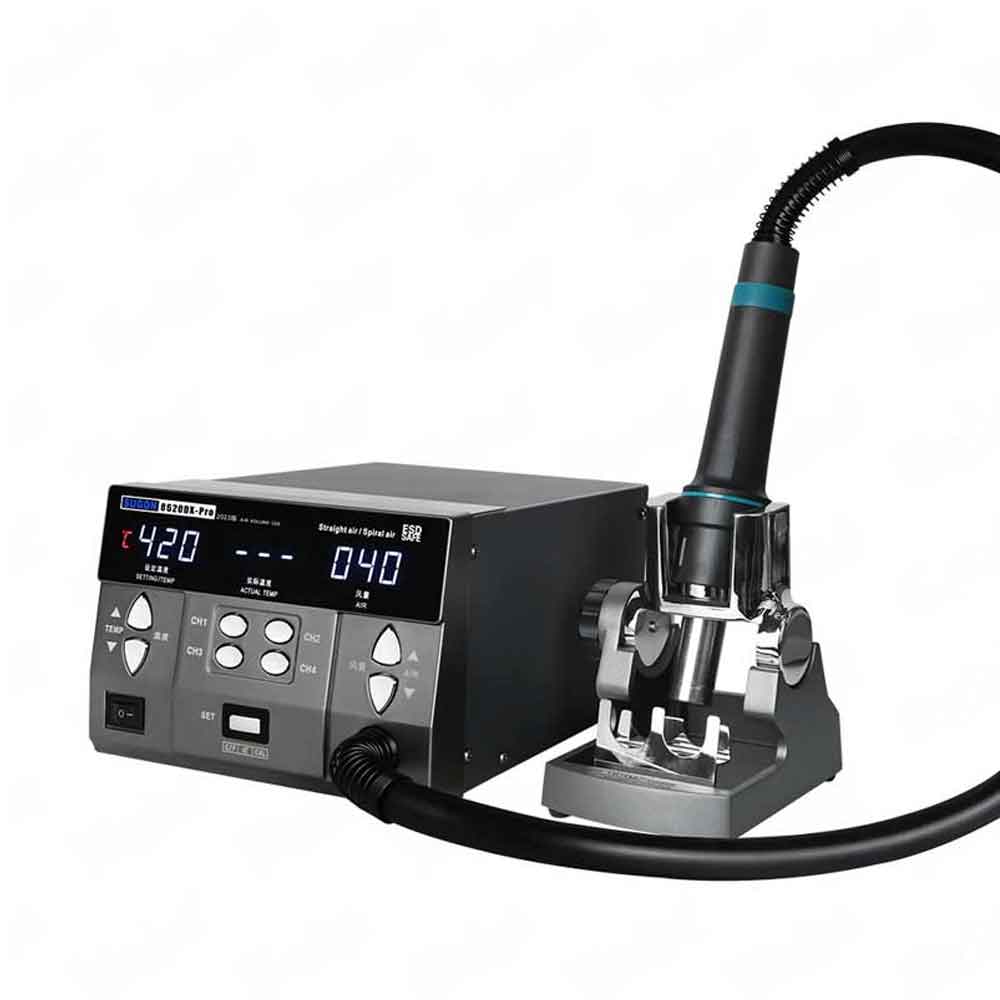

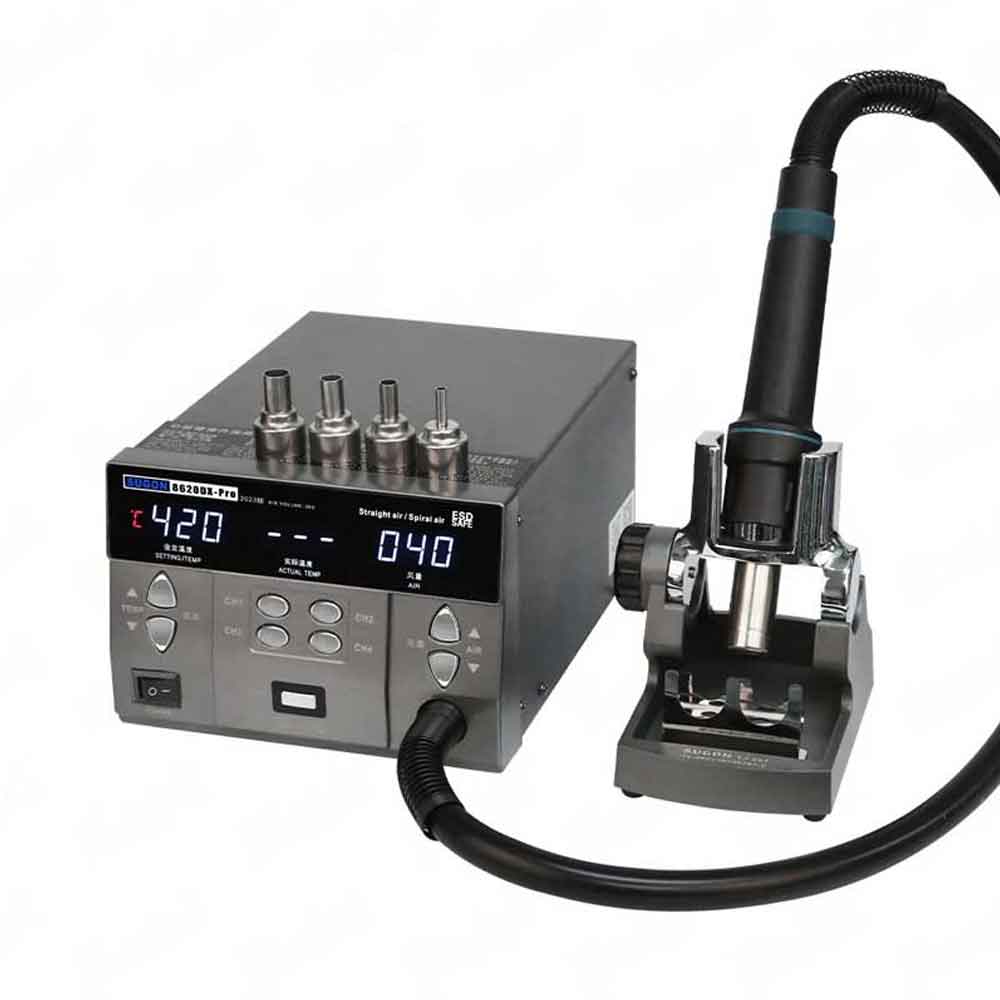

SUGON 8620DX Pro SMD Rework Station

  • Power Supply: 110V/220V AC
  • Total Power Consumption: 1000W
  • Hot Air Temperature Range: 100°C to 500°C
  • Hot Air Flow Rate: 120 L/min (max)
  • Soldering Iron Temperature Range: 200°C to 480°C
  • Soldering Iron Power: 90W
  • Display Type: Digital LCD
  • Temperature Stability: ±1°C
  • Temperature Control: PID (Proportional-Integral-Derivative) technology
  • Airflow Control: Stepless adjustment
  • Nozzle Compatibility: Various sizes available
  • Handpiece Cooling: Automatic after shutdown
  • ESD Safe: Yes

Rs.14,448.00 Rs.16,000.00


Sugon 8620DX-Pro 1300W High Power Heat Gun Digital Display Desoldering Rework Station


  • The SUGON 8620DX PRO SMD REWORK STATION patented air nozzle holder can quickly change the air gun nozzle under constant temperature and constant air volume without other auxiliary tools
  • It is equipped with aluminum bracket and No. 5, 7, 10 direct air nozzles and No. 7, 10 spiral air nozzles
  • There is no longer a distinction and boundary between straight air and spiral air, only a different air nozzle needs to be replaced
  • Gorgeous water lamp display: set temperature, real-time temperature, set air volume, display more accurate, more convenient to use
  • Four memory buttons, one second to read, three seconds to store
  • With temperature conversion/buzzer switch/temperature calibration/automatic sleep function
  • Press the button to accurately adjust the temperature and air volume
  • Large air volume, high power, fast heating, accurate and stable
  • Mutual inductance monitoring is increased between temperature and air volume. When there is an unexpected failure of the air pump, the heating core will quickly stop the reaction and reduce the occurrence of fire accidents
  • Upgrade the pluggable components, the handle of the air gun can be removed to replace the hot components, greatly improving the efficiency of the heat gun
  • Setting temperature range: 100~500; actual temperature range: 100~500; air volume adjustment range: 1~200 steps
  • 6 quick change and storage brackets, easy and fast to replace the air nozzle, no need to wait for the air nozzle to cool down and then replace it
  • The system is equipped with an automatic high-air volume cooling function to extend the life of the heat generator and protect the hot air handle
  • After the handle is placed on the air gun bracket, it will enter the rapid cooling state, wait for 15-20 seconds, and then enter the dormant state

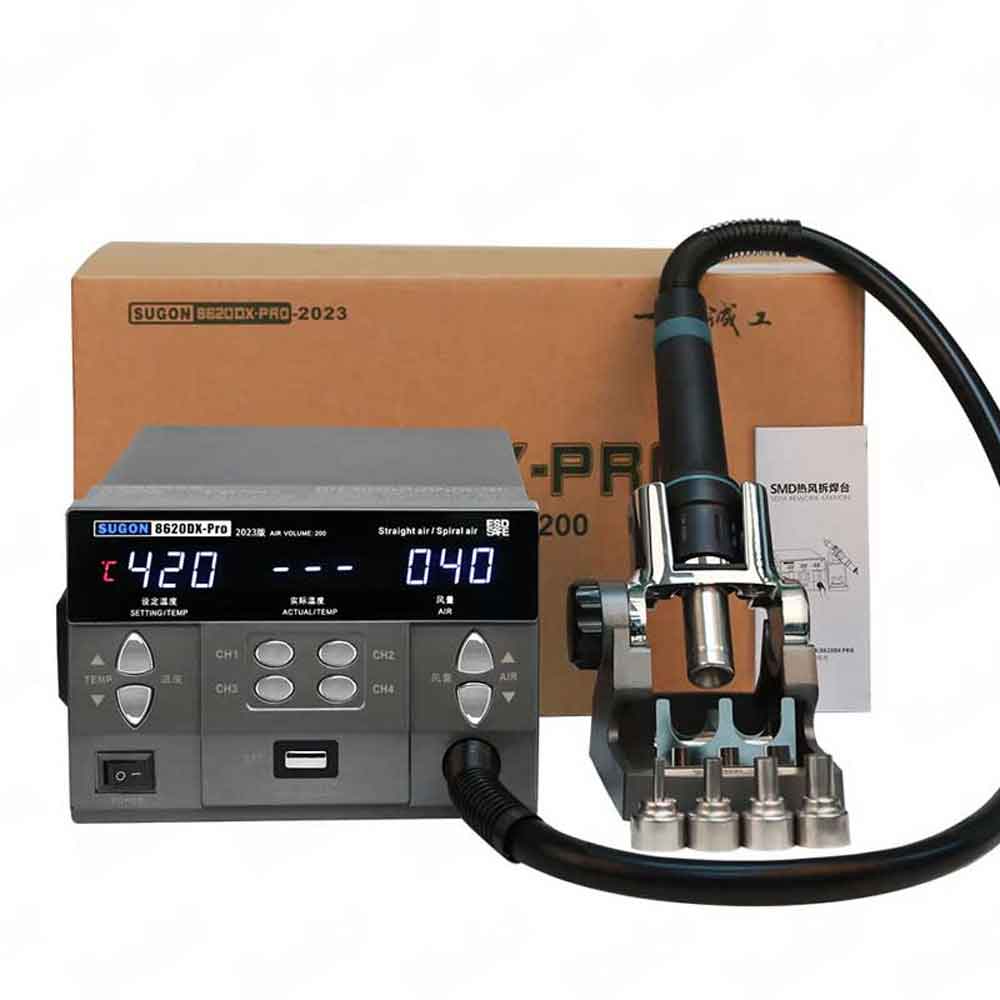

Packing Details:

  • 1 x Hot Air Rework Station
  • 1 x Air Gun Stand
  • 6 x Nozzle
  • 1 x Power Cable
SUGON 8620DX Pro SMD Rework Station
SUGON 8620DX Pro SMD Rework Station
SKU: SUGON8620DXPRO Categories: , ,
Weight 3.5 kg

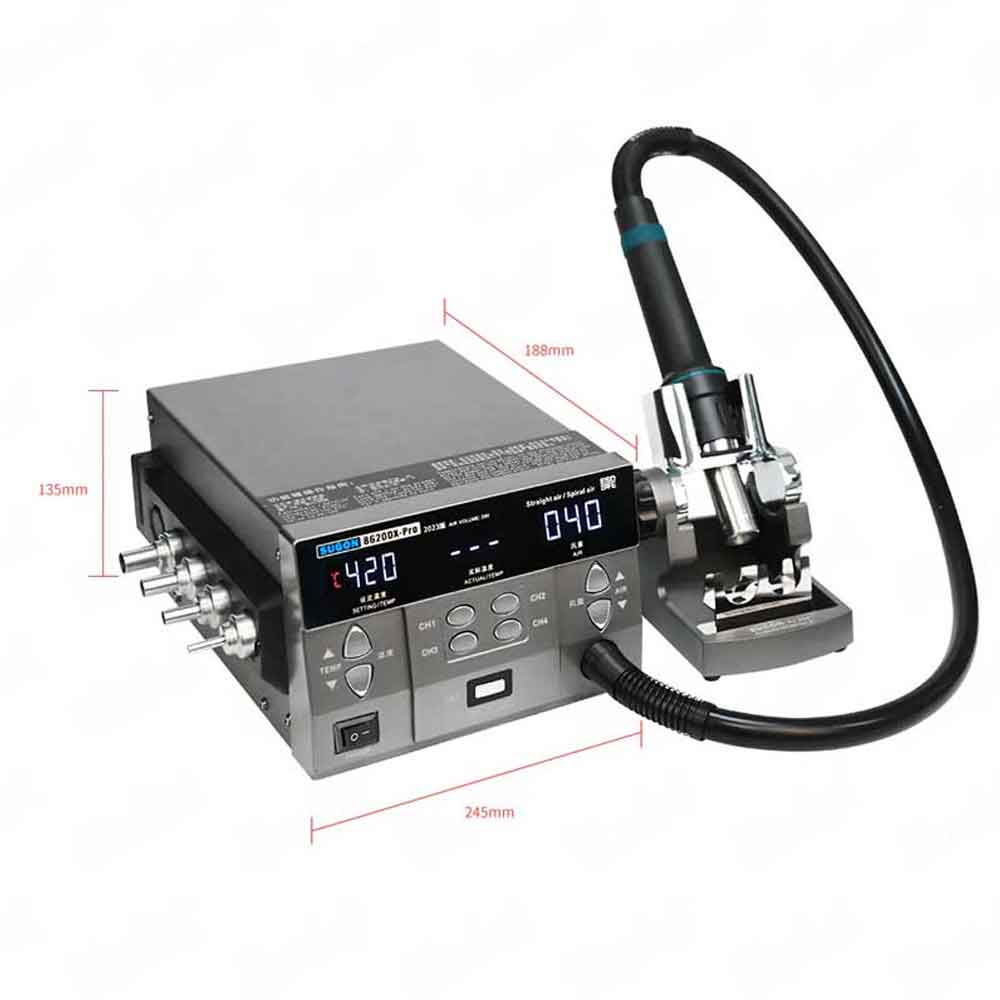

Dimensions 30 × 20 × 15 cm
