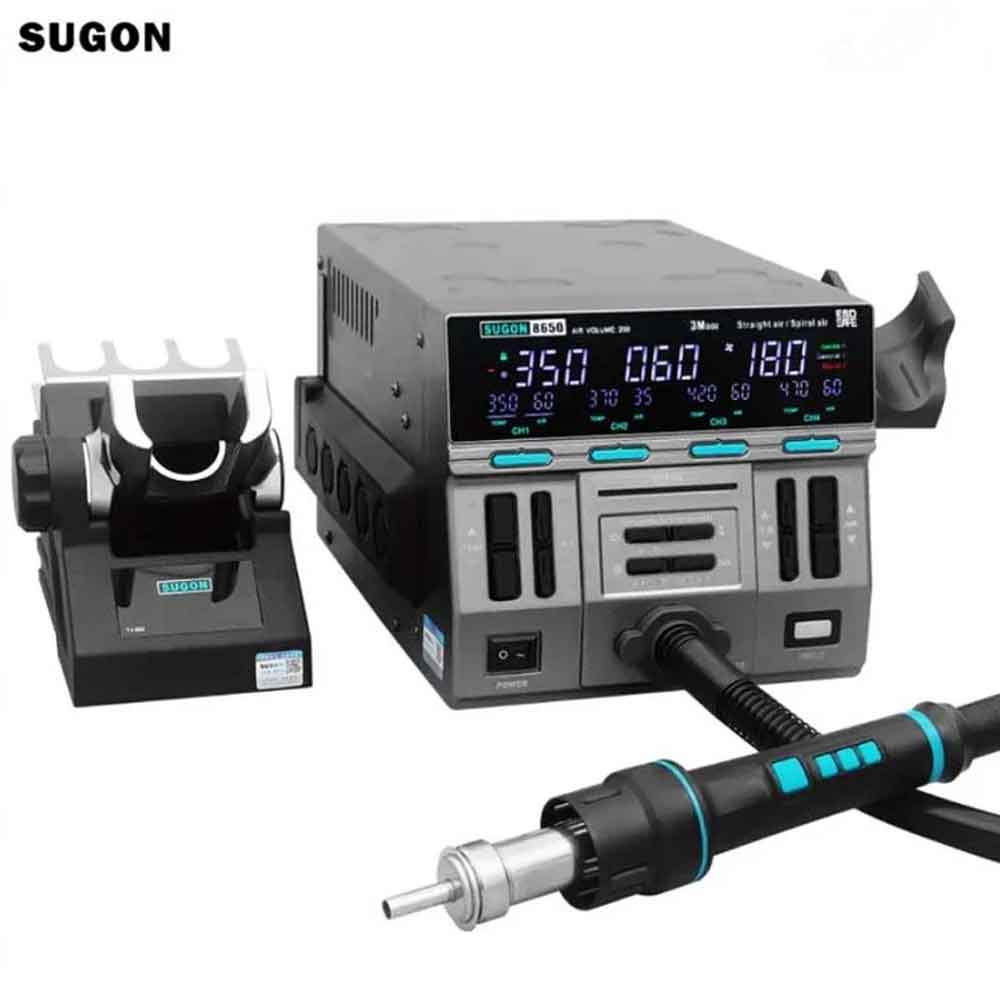

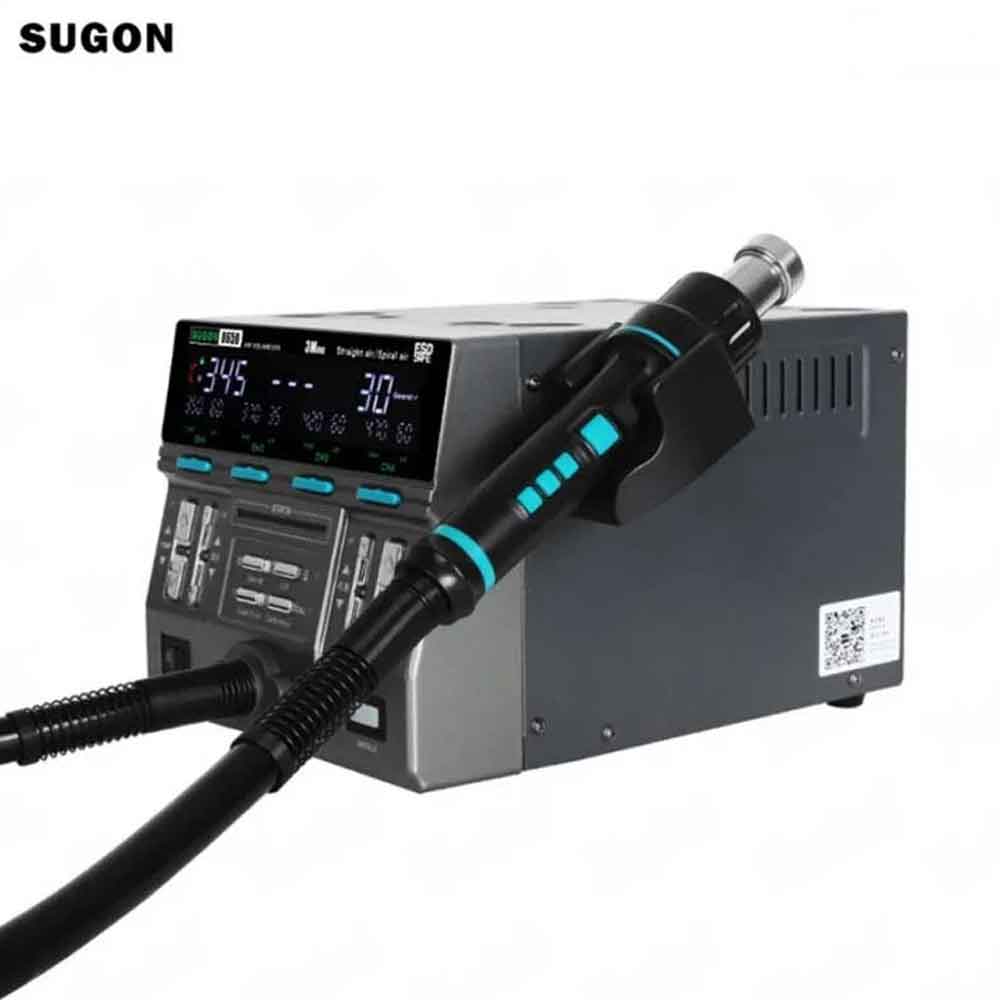

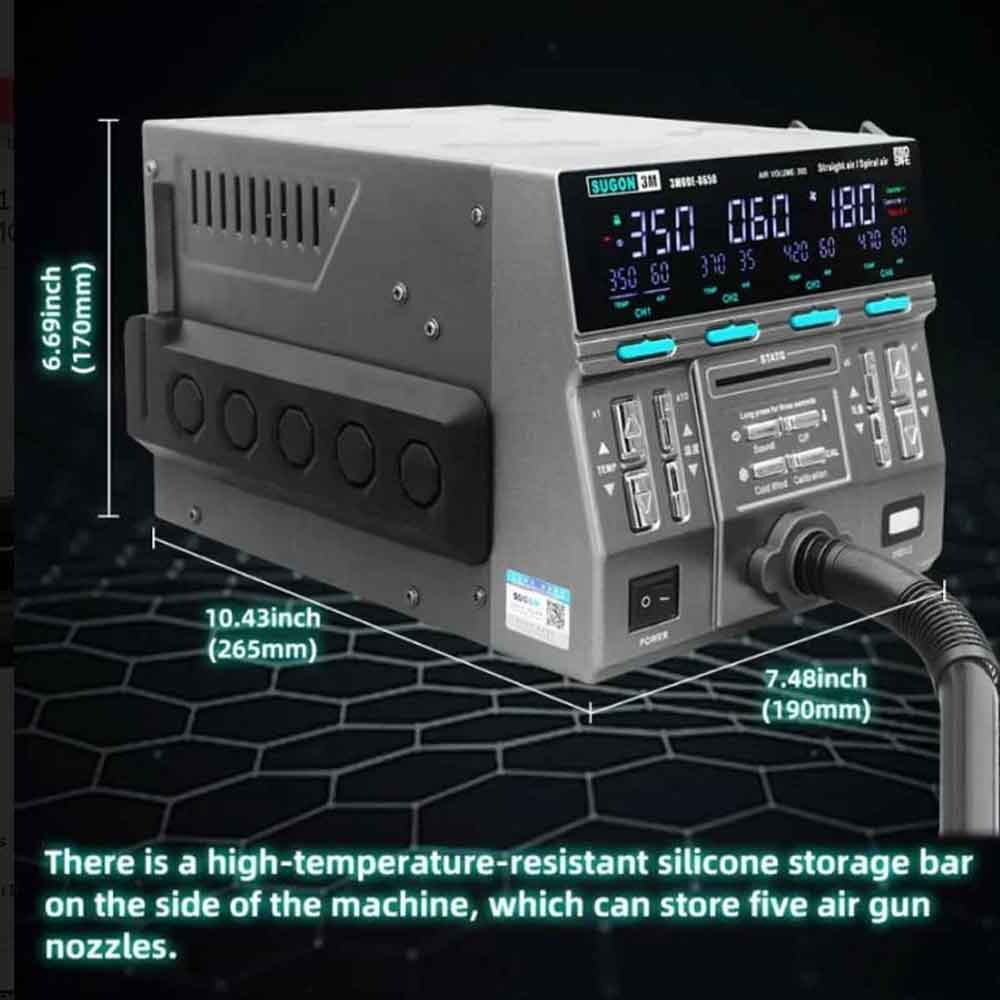

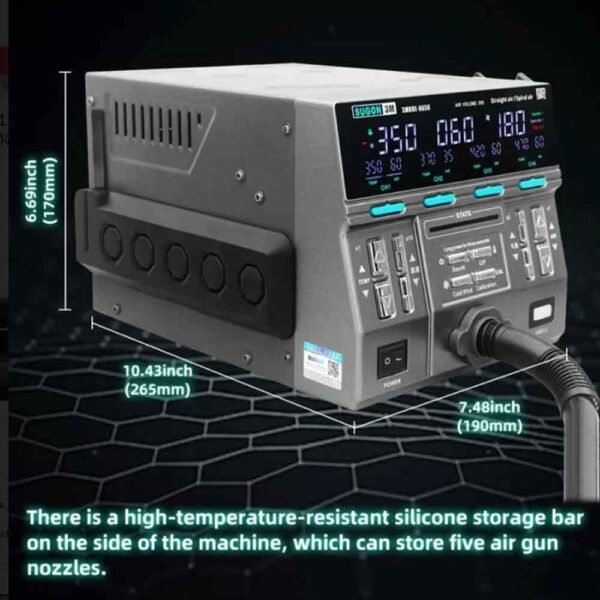

Sugon 8650 SMD Rework Station

The Sugon 8650 Pro SMD Rework Station is a professional-grade hot-air station built for precision rework on mobile phone motherboards, BGA chips, and other delicate SMD components. With a powerful 1,300 W heating system and a pure-copper transformer, it delivers rapid heat-up and consistent performance even under heavy usage.

Its digital interface shows real-time temperature and airflow readings, while four built-in memory channels allow you to save and recall your favorite settings. Choose among three heating modes — precision, general, and high-speed — to match your workflow. A magnetic switch on the gun automatically activates sleep mode when placed on the holder, reducing power consumption and extending the heating element’s life.

Additional features include automatic large-volume cooling, a removable, plug-in heating core for easy maintenance, and a silent vortex fan for stable and smooth airflow. Whether you’re doing fine-pitch IC rework, BGA desoldering, or soldering sensitive components, the Sugon 8650 Pro gives you the power, control, and reliability you need.

⭐ Key Features

• High-power 1,300 W heating core for fast and reliable rework
• Digital display for set and real-time temperature + airflow
• Four memory channels to store temperature & air volume presets
• Three heating modes: Precision, General, High-Speed

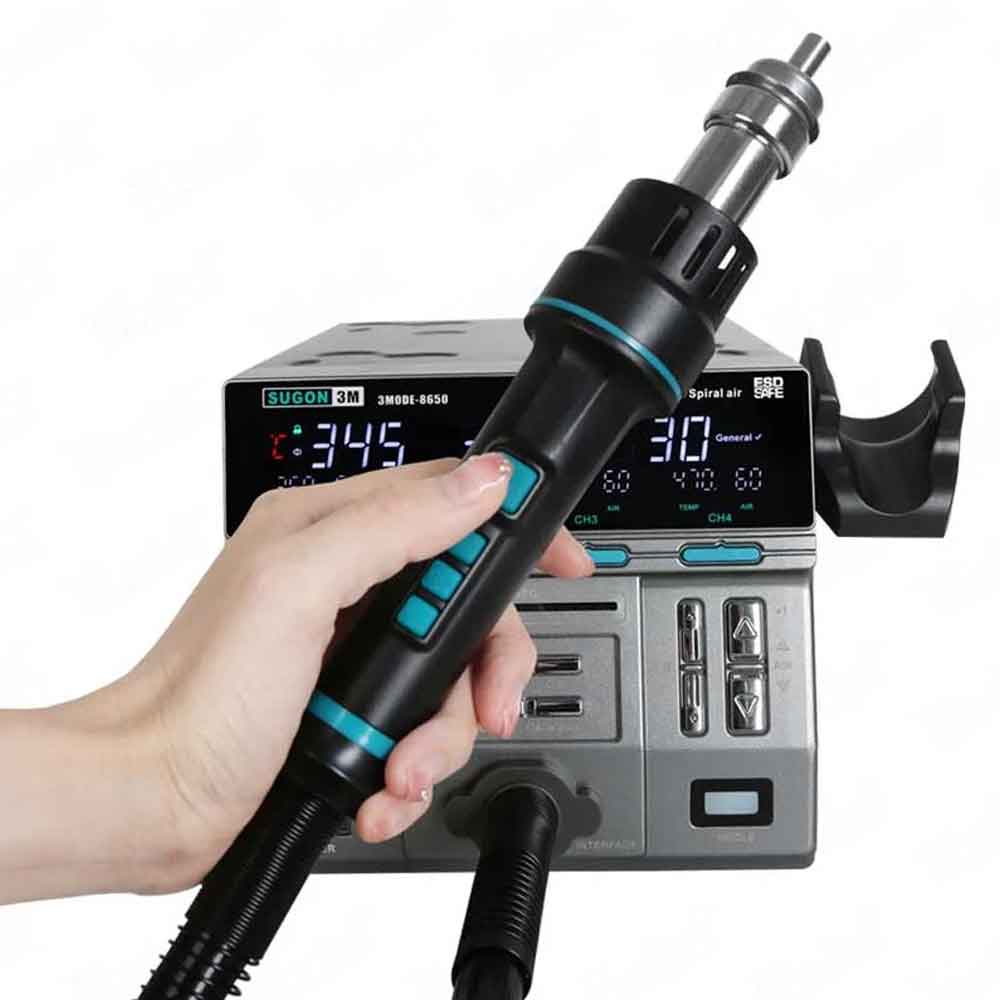

• Magnetic sleep mode via gun handle placement
• Automatic large-volume cooling to prolong heating element life
• Plug-in heating core for easier replacement and maintenance
• Vortex brushless fan for smooth airflow and low noise
• Temperature calibration & cold-air function
• Wide airflow range: 1–200 (gear settings)


  ⚙️ Technical Specifications

  Specification	Details
  Model	Sugon 8650 Pro
  Power Output	1300 W
  Voltage	AC 110V / 220V (region dependent)
  Temperature Range	100°C – 500°C (212°F–932°F)
  Air Volume Range	Grade 1–200
  Display	Digital (Temperature + Air Volume)
  Memory Channels	4 Presets for Temp + Air
  Heating Modes	Precision / General / High-Speed
  Cooling Function	Automatic large-volume cooling
  Sleep Mode	Magnetic handle-based sleep
  Nozzle Compatibility	Supports various nozzles for different SMD / BGA tasks
  Handle	Detachable / Plug-in heating core
