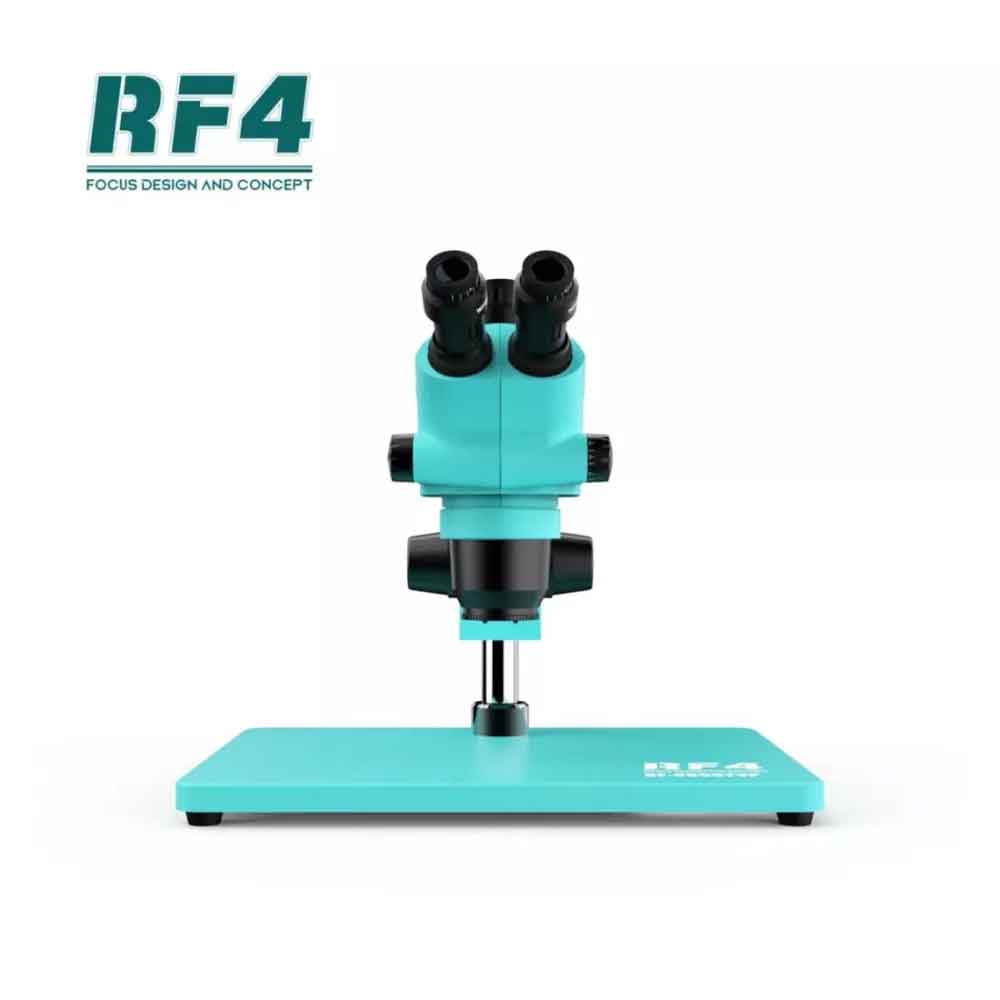

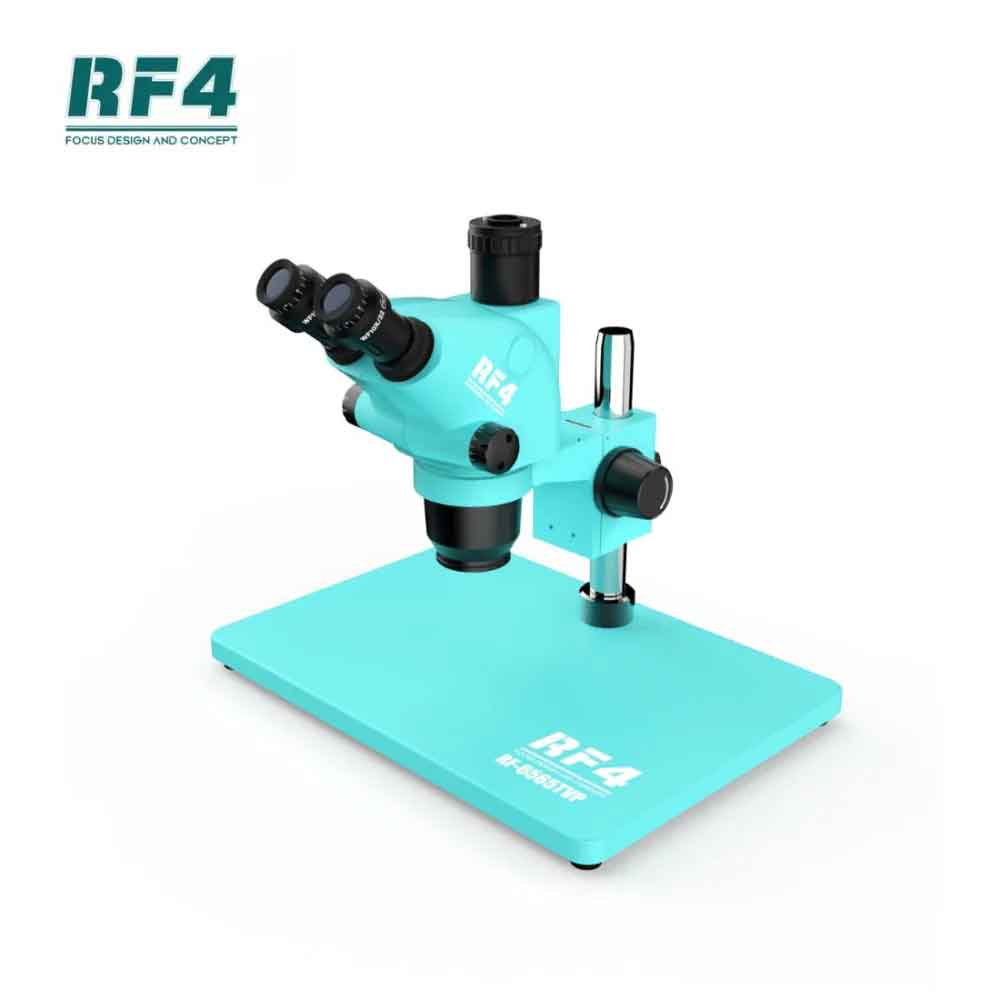

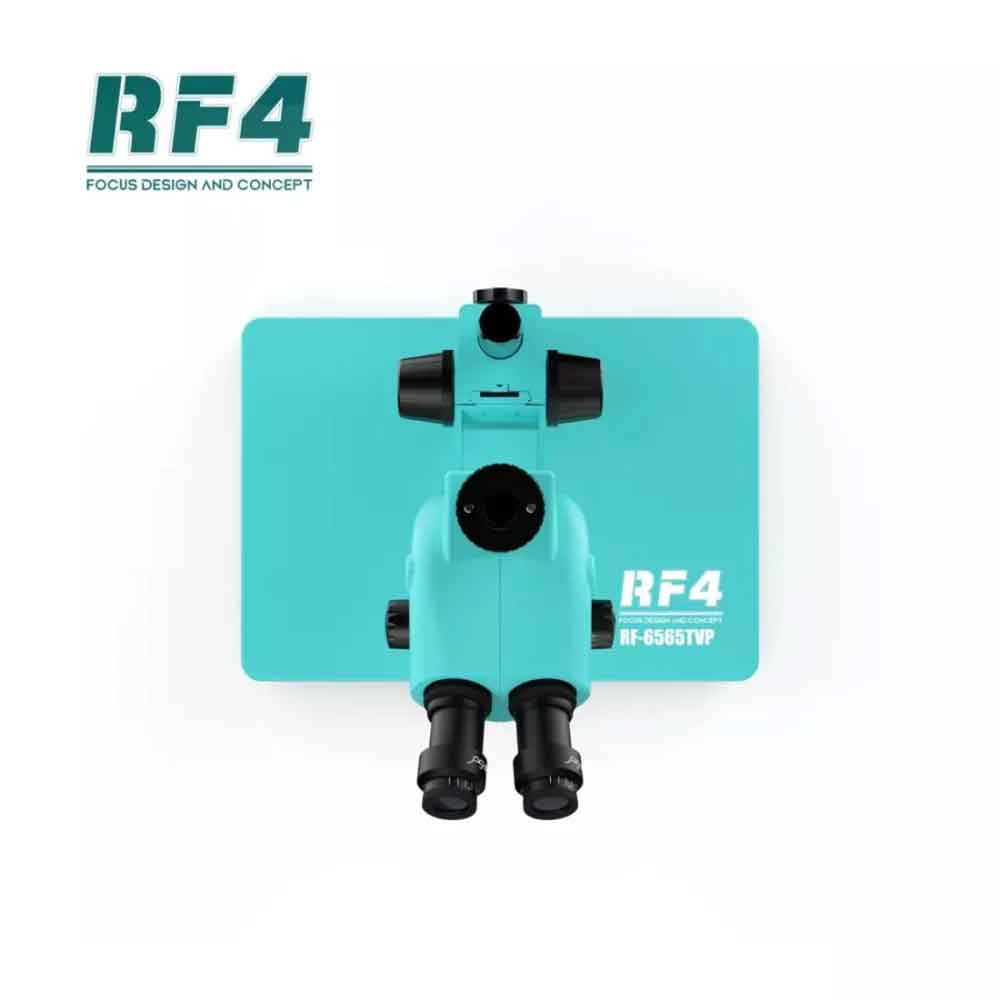

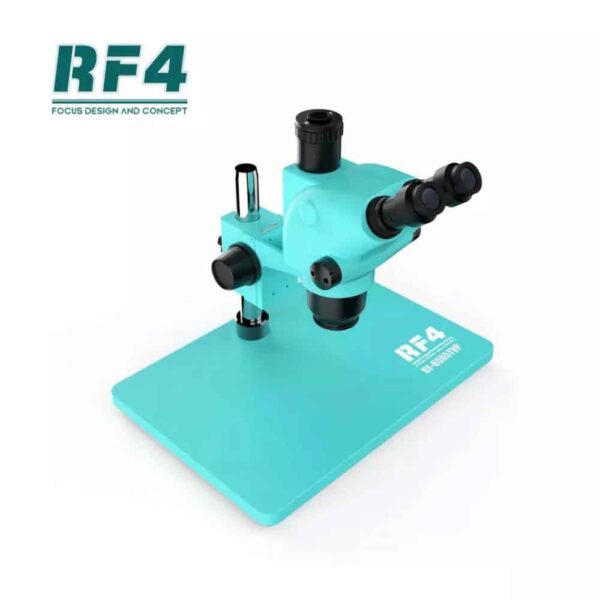

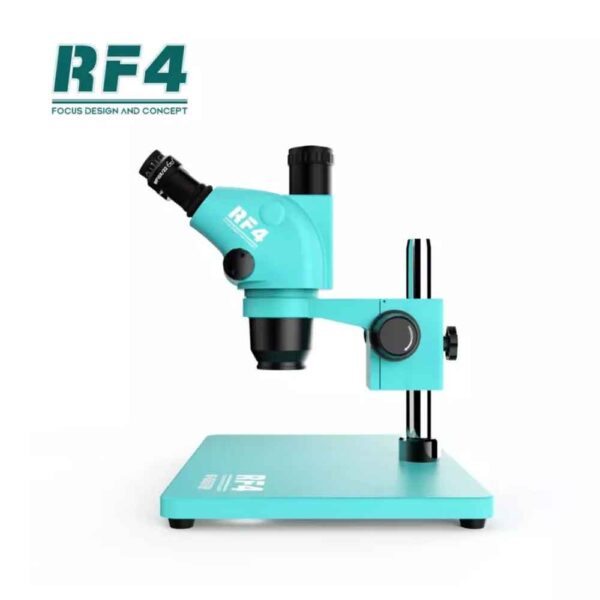

RF4 RF-6565TVP Trinocular Stereo Microscope with Big Base 6.5X~65X Zoom – 3D Continuous Zoom

RF4 RF6565TVP Gemological Microscope Trinocular Synchronous Zoom Microscope Used For Semiconductor Maintenance Work

The RF4 RF-6565TVP gives you professional-grade clarity, versatility, and ergonomic comfort — a top choice for electronics technicians, PCB repair specialists, lab professionals, and quality-control experts. With a continuous zoom ranging from 6.5× to 65×, this microscope lets you smoothly shift from broad overviews to fine-detail close-ups — without needing to change lenses.

Thanks to its full-optical glass elements and wide-field WF10X/22 mm eyepieces, RF-6565TVP delivers crisp, flat, and high-contrast stereo images with excellent sharpness and minimal distortion. The 45°-tilted trinocular head with adjustable interpupillary distance ensures comfortable viewing over long sessions, while the trinocular port (with 1/2 CTV adapter) allows you to attach a camera for live monitoring or documentation — useful for teaching, demonstration, or inspection logs.

With a long working distance (approx. 100–110 mm) and a sturdy all-metal pillar/base stand, the microscope offers plenty of space under the lens for soldering irons, tweezers or tools — perfect for PCB rework, mobile-board repair and micro-soldering tasks.A built-in adjustable LED ring light (with up to 144 LEDs) ensures bright, uniform, shadow-free illumination — vital for inspecting tiny solder joints, fine traces, or microscopic components, even under varied ambient lighting conditions.

Whether you are reworking motherboards, inspecting components under a microscope, performing soldering or desoldering, or doing detailed quality control — RF4 RF-6565TVP offers the clarity, flexibility and durability you need for professional-level work.

Key Features

• Continuous 6.5–65× Zoom Magnification — Smooth optical zoom from low to high magnification without lens changes, ideal for inspection, soldering, and precise work.
• Wide-Field WF10X/22 mm Eyepieces & Full Optical Glass Optics — Provides broad field of view, sharp contrast, flat images and true-to-life detail for accurate inspection.
• Trinocular Head with 45° Inclination & Adjustable Interpupillary Distance — Comfortable ergonomics for long working sessions; supports camera attachment for documentation or live display.
• Camera-Ready with 1/2 CTV Adapter (Synchronous Zoom) — Lets you connect a microscope camera and view or record the same zoomed image on a monitor while you work.
• Large Working Distance (~100–110 mm) — Ample space under the lens for soldering irons, tweezers, and other tools — ideal for PCB/mobile board rework and assembly.
• Sturdy All-Metal Pillar/Table Stand with Large Base — Ensures stable and vibration-free performance — crucial for precise soldering, inspection, and delicate component work.

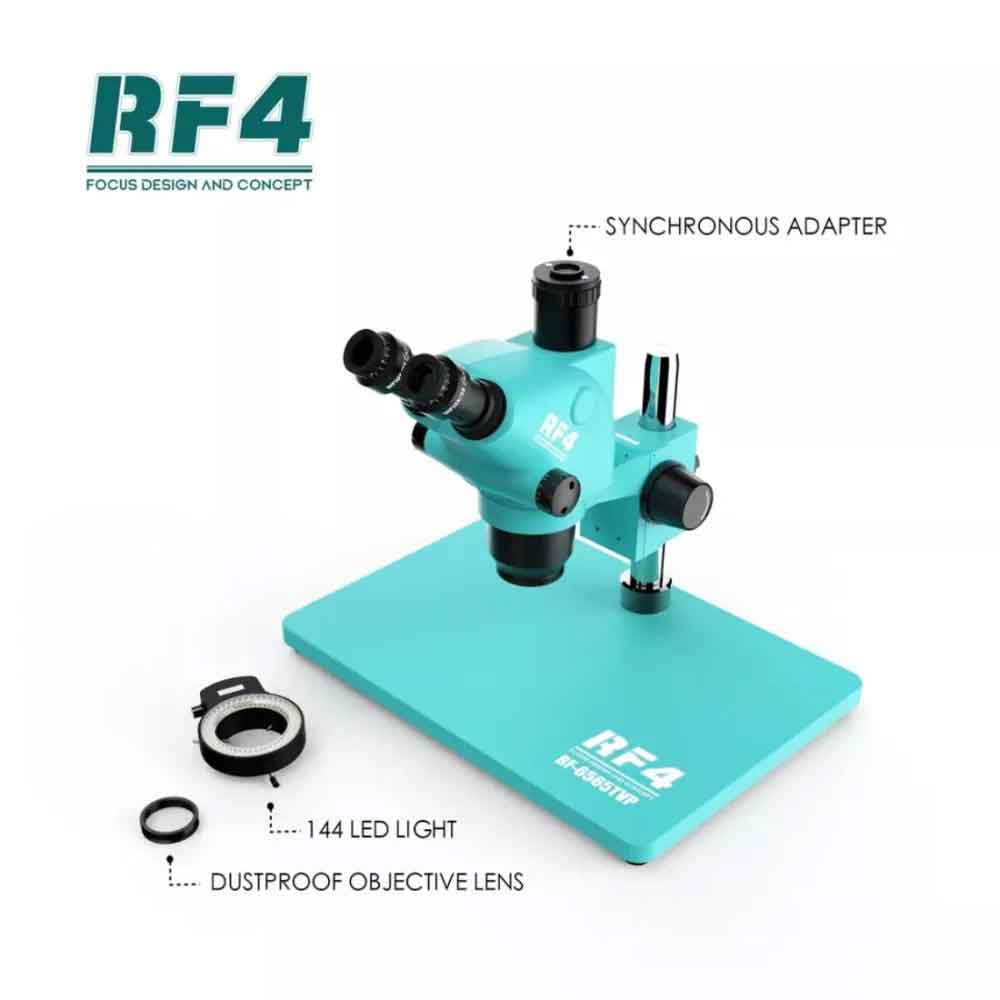

• Built-in Adjustable LED Ring Light (≈144 LEDs) — Provides strong, uniform illumination (30,000–35,000 Lux, cold-white 6000–7000 K) — revealing tiny details even in low-light ambient conditions.
• High-Resolution, High-Flatness Stereo Imaging — Produces stereo 3D images with minimal distortion and high contrast — essential for component inspection, solder-joint analysis, and precision tasks.
• Adjustable Focus Bracket with ~50 mm Lift Range — Provides easy height adjustment for differently sized workpieces or components.
• Wide Application Spectrum — Suitable for PCB inspection & repair, mobile-board rework, soldering/desoldering, electronics assembly, lab inspection, quality control, education/training, jewelry work, and more.


  Technical Specifications

  Specification	Detail
  Model	RF4 RF-6565TVP Trinocular Stereo Microscope
  Magnification Range	6.5× – 65× continuous zoom
  Eyepieces	WF10X / 22 mm wide-field, high-eyepoint
  Objective Lens	Zoom objective (0.65× – 6.5×) for continuous magnification
  Head Type	Trinocular head, 45° inclined, 360° swiveling, adjustable interpupillary distance
  Camera Adapter	1/2 CTV adapter included — supports synchronous zoom for monitor/camera output
  Working Distance	~100–110 mm (expandable to 30–287 mm with auxiliary lenses)
  Stand / Base	All-metal pillar/table stand with base 380 mm × 260 mm
  Focus Adjustment	Metal focusing bracket with approx. 50 mm lift range
  Illumination	Built-in adjustable LED ring light (≈144 LEDs, 30,000–35,000 Lux, 6000–7000 K)
  Weight / Build	Sturdy all-metal construction, stable & vibration-resistant for heavy use
  Typical Applications	PCB/mobile-board repair, soldering/desoldering, electronics inspection, component assembly, quality control, lab work, education/training, jewelry repair, small-part inspection.
