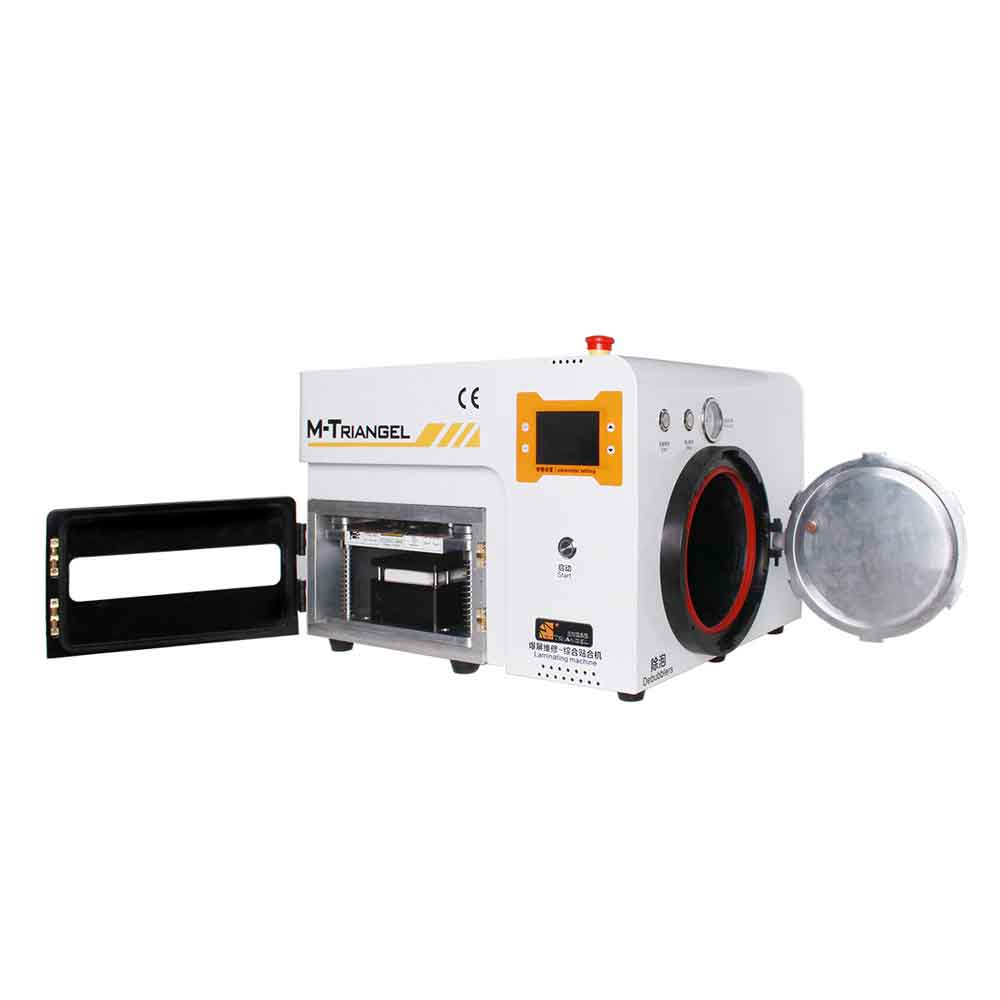

M-Triangel MT-103 LCD lamination and bubble remover machine 5-in-1 function all-in-one for repairing flat (straight) and curved screens. Such as iPhone, Samsung Edge, Xiaomi, HTC, Motorola, VIVO, LG, Sony and other phones and small pad screen repair.
Q: What is the difference between MT-102 and MT-103?
A: MT-103 is greater pressure than MT-102 and good for curved LCD.
- Suitable for touch mobile phones screen within 7 inches (including edge curved and flat LCD).
- All in one machine, built-in vacuum pump and air compressor.
- Latest upgrades LCD Repair Machine For LCD, LED, OLED laminating, air bubbles removing.
- Specially designed for Edge Curved Screen, such as Note8, S8, S8+, S9, S9.
- The latest design of the debubbling door, more secure, easy to operate, one key start, touch panel system control.
- Special molds for more precise alignment and more effective curved screen LCD repair.
- 12 months warranty, online technical support and training is proved.
- Lamination type: curved surface, flat pressing.
- Production efficiency : 60s /4pcs (independent joint mode) an hour to 24PCS (defoaming assist mode).
- Heating mode: constant temperature heating.
- Lamination time: 60s.
Lamination temperature: 35-45℃.
Defoaming time: 10 minutes.
- Lamination size: up to 7 inches LCD.
- Equipment size: 570*420*360 mm.
- Cabin size: Deep 170 mm, Diameter 160 mm.
- Fitting temperature: 60℃.
- Power supply: AC220V/110V 1500W.
- Equipment power: 800W.
- Net weight: 56.5KG.
- Shipping weight: 68KG.
- 1× MT-103 Laminating and Bubble Remove Machine.
- 2× Seals.
- 2× Flat lamination mats.
- 1× MT-17s wooden case.
- 1× Instruction manual.
