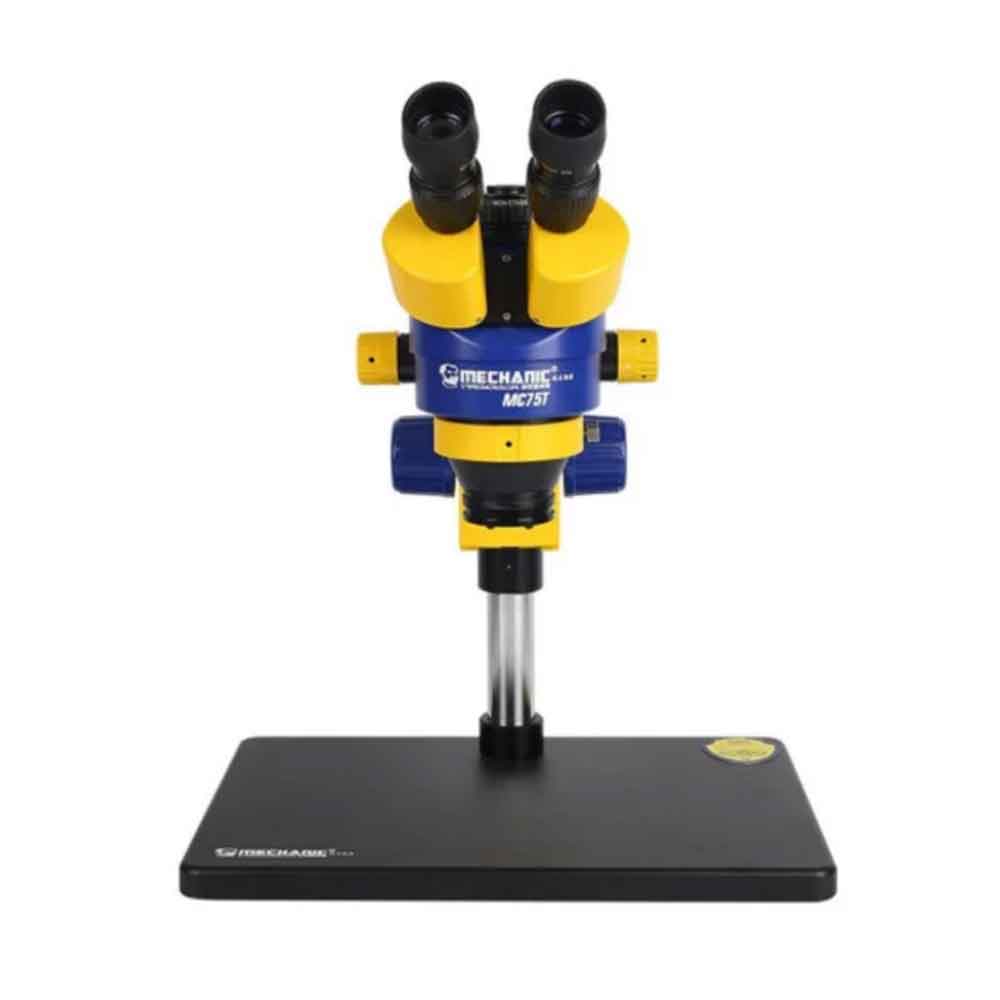

Mechanic MC75T-B11 Microscope With 0.5X Zooming Lens

Mechanic MC75T-B11 Microscope With 0.5X Zooming Lens

The Mechanic MC75T-B11 microscope is a robust, versatile stereo microscope designed for electronics technicians, mobile-board repair professionals, quality-control labs, and hobbyists. With a continuous 7–45X optical zoom (via 0.7–4.5X objective), it allows smooth transition from broad overview to detailed close-up inspection without the need to change lenses.

The wide-field WF10X eyepieces provide a broad, comfortable viewing field — reducing eye strain during long sessions. Its trinocular head design also offers a camera port (CTV interface), enabling live display or documentation when connected to a compatible camera, making it useful for training, demonstration or detailed record-keeping.

With a generous working distance of ~100 mm (extendable to 30–287 mm with auxiliary lenses), there’s ample space beneath the lens to operate soldering irons, tweezers or other tools — a must-for PCB rework or component assembly. The included LED cold-light ring illumination (stepless adjustable brightness) ensures consistent, shadow-free lighting, improving visibility of fine solder joints or micro components even in low-light conditions.

Built on a sturdy all-metal B11 base and adjustable metal focusing stand (with ~50 mm lift), the MC75T-B11 ensures stable, vibration-free performance — important for precision tasks and long-duration work.

Whether you’re repairing mobile phone motherboards, inspecting PCBs, performing soldering or rework, assembling small components, or doing quality control — the MC75T-B11 provides clarity, versatility, and durability required for professional-grade results.

✨ Key Features

• 7–45X Continuous Zoom (0.7–4.5X objective) — Smooth optical zoom without lens swapping, ideal for flexible inspection.
• Wide-field WF10X eyepieces — Provide broad view and comfortable observation even during extended sessions.

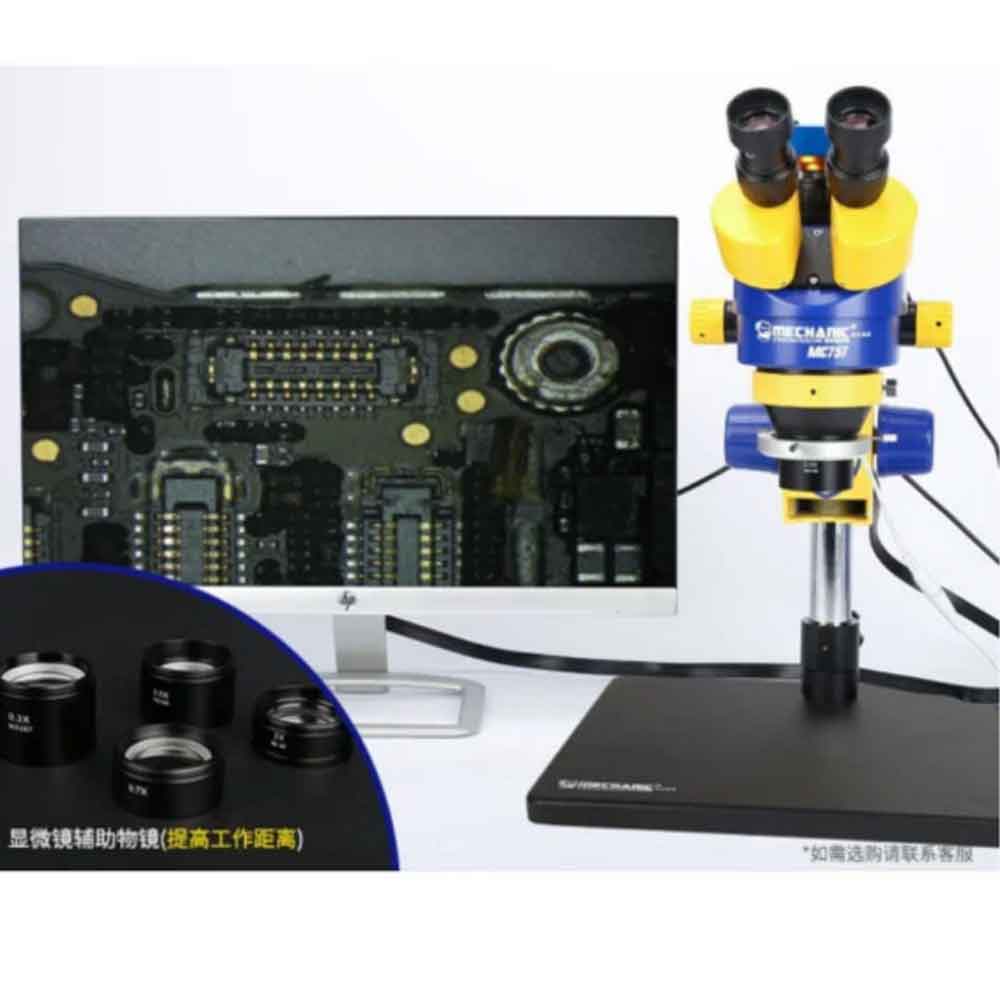

• Trinocular head with CTV camera port — Enables connection of a camera for live view, video or photography — useful for documentation and coaching.
• Generous working distance (~100 mm) — Offers enough space for tools like soldering irons or tweezers under the lens, suitable for PCB and mobile-board work.
• Adjustable interpupillary distance (54–76 mm) — Ensures ergonomic comfort and accommodates users with different eye spacing or those wearing glasses.
• Durable all-metal B11 base & stable stand — Provides vibration-free, stable support for precise tasks and heavy-duty use.
• Adjustable focusing bracket (50 mm lift range) — Allows precise focus and height adjustment for workpieces of different thicknesses.
• High-definition optical coated lenses with dust-proof mirror — Deliver clear, high-contrast stereo images free from glare or distortion.
• Built-in LED ring light (56 LEDs, adjustable brightness) — Provides bright, white, uniform illumination suitable for soldering, inspection, and assembly work.
• Wide application scope — Excellent for PCB/mobile-board repair, electronics inspection, soldering and rework, component assembly, quality control, teaching/demonstration, and general lab work.


  🔧 Technical Specifications

  Specification	Detail
  Model	MC75T-B11
  Magnification Range	7X – 45X (0.7X–4.5X objective zoom)
  Eyepieces	WF10X wide-field eyepieces
  Viewing Head	Trinocular / binocular head, 45° inclined, interpupillary distance 54–76 mm, 360° rotatable
  Working Distance	~100 mm standard; extendable to 30–287 mm with auxiliary lenses

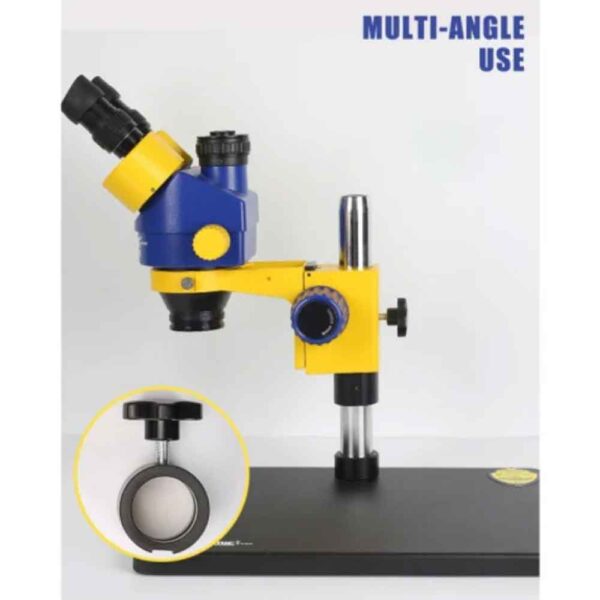

  Focusing Mechanism	Metal focusing bracket with ~50 mm lift range
  Illumination	Built-in LED ring light (56 LEDs, cold white, adjustable brightness)

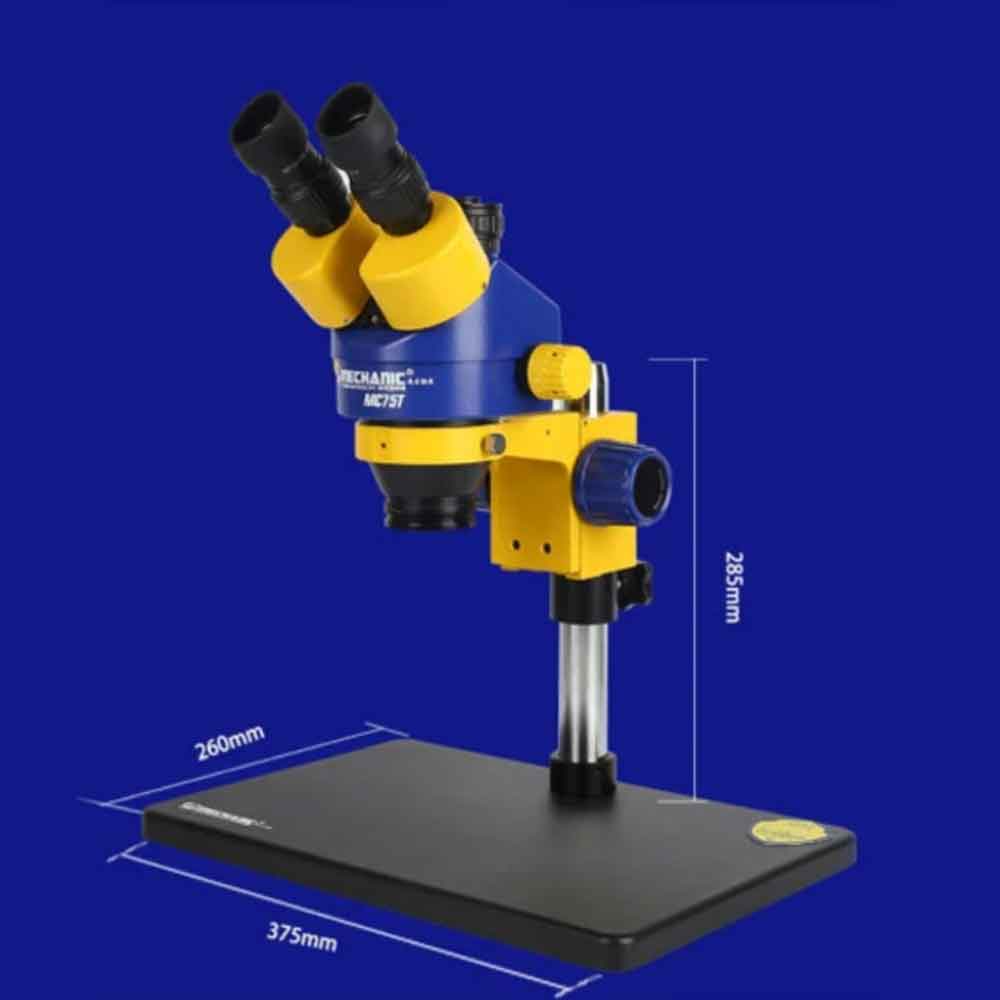

  Base	All-metal B11 base, stable and heavy for vibration-free operation
  Optional Aux Lenses	0.3X / 0.5X / 0.7X / 1.5X / 2.0X for extended working distance/magnification (optional)
  Typical Uses	PCB/mobile-board repair, soldering, electronics rework, component assembly, inspection, lab tests, educational use, quality control
  Build Material	All-metal body, coated high-definition optical glass lenses
