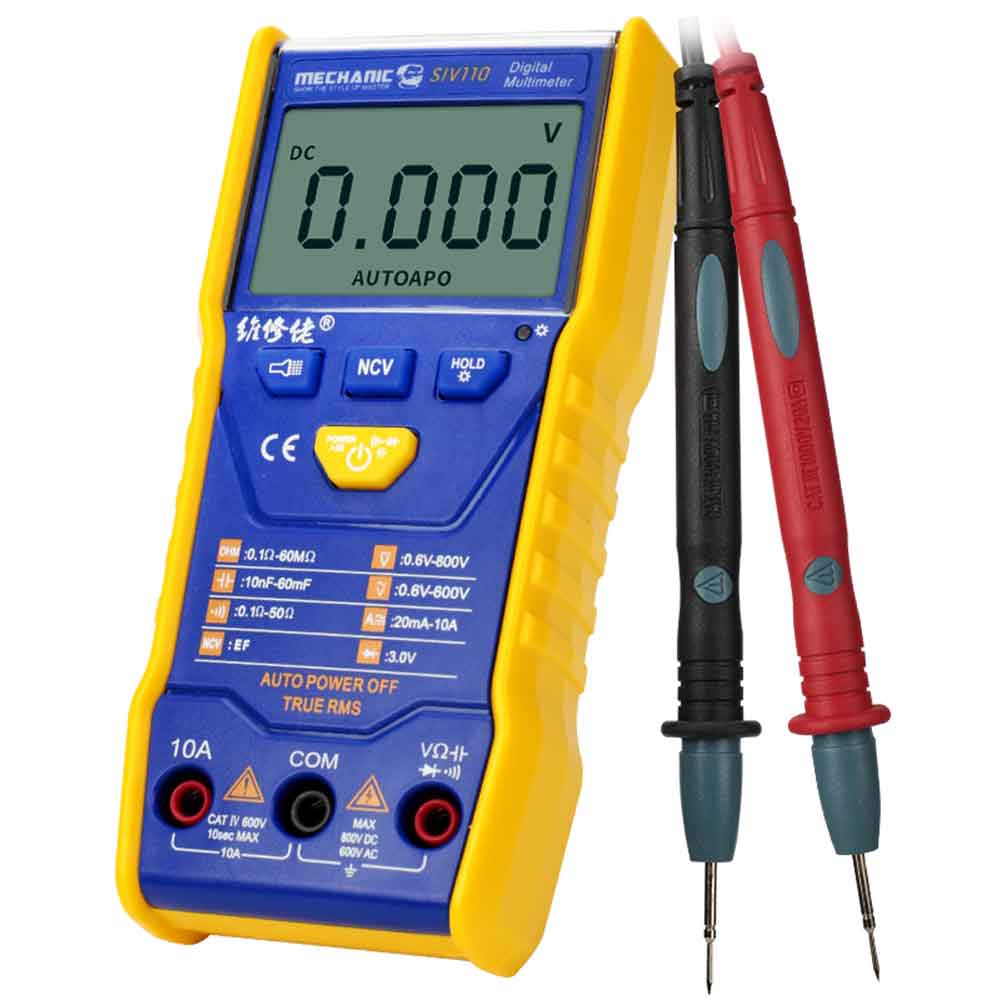

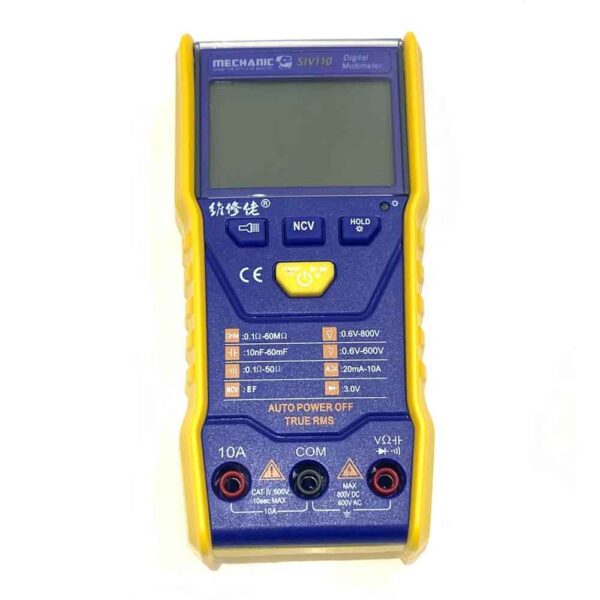

Mechanic SIV110 Pocket Digital Multimeter
SIV series is a mini 35/6-digit auto digital instrument. It have multi-function with stability, high accuracy, high reliability, clear reading, overload protection. It is used for based instrument with parameter such as measure DC voltage, AC voltage, DC current, AC current, resistance, capacitance, diode, continuity test, temperature measurement, frequency measurement and true RMS. It is the best tool for laboratories, factories, radio enthusiasts and families.
1. General Characteristics
1-1. Display: liquid crystal display (LCD).
1-2. Maximum display: 5999 (3 5/6) bit automatic polarity display.
1-3. Measurement method: double integral A/D conversion.
1-4. Sampling rate: about 3 times per second.
1-5. Over range display: The highest position shows “OL”.
1-6. Low voltage display : “Ea” symbol appears.
1-7. Working environment: (0~40)°C, relative humidity <80%.
1-8. Power: AAA 2* 1.5V battery.
1-9. Volume (size): 176×67×33mm (LXWXH).
1-10. Weight: about205g (including 1.5V battery).
1-11. Attachment: a manual, a certificate, a box, a pair of pen, two AAA1.5V battery.
2. Technical characteristics
2-1. Accuracy (reading data of a%+ least significant digits), guaranteed accuracy environment temperature: (23.5) °C., Relative humidity <75%, calibration guarantee period from the date of manufacture for one year.
2-2. Performance (Note “,” indicates that the table has this function).
